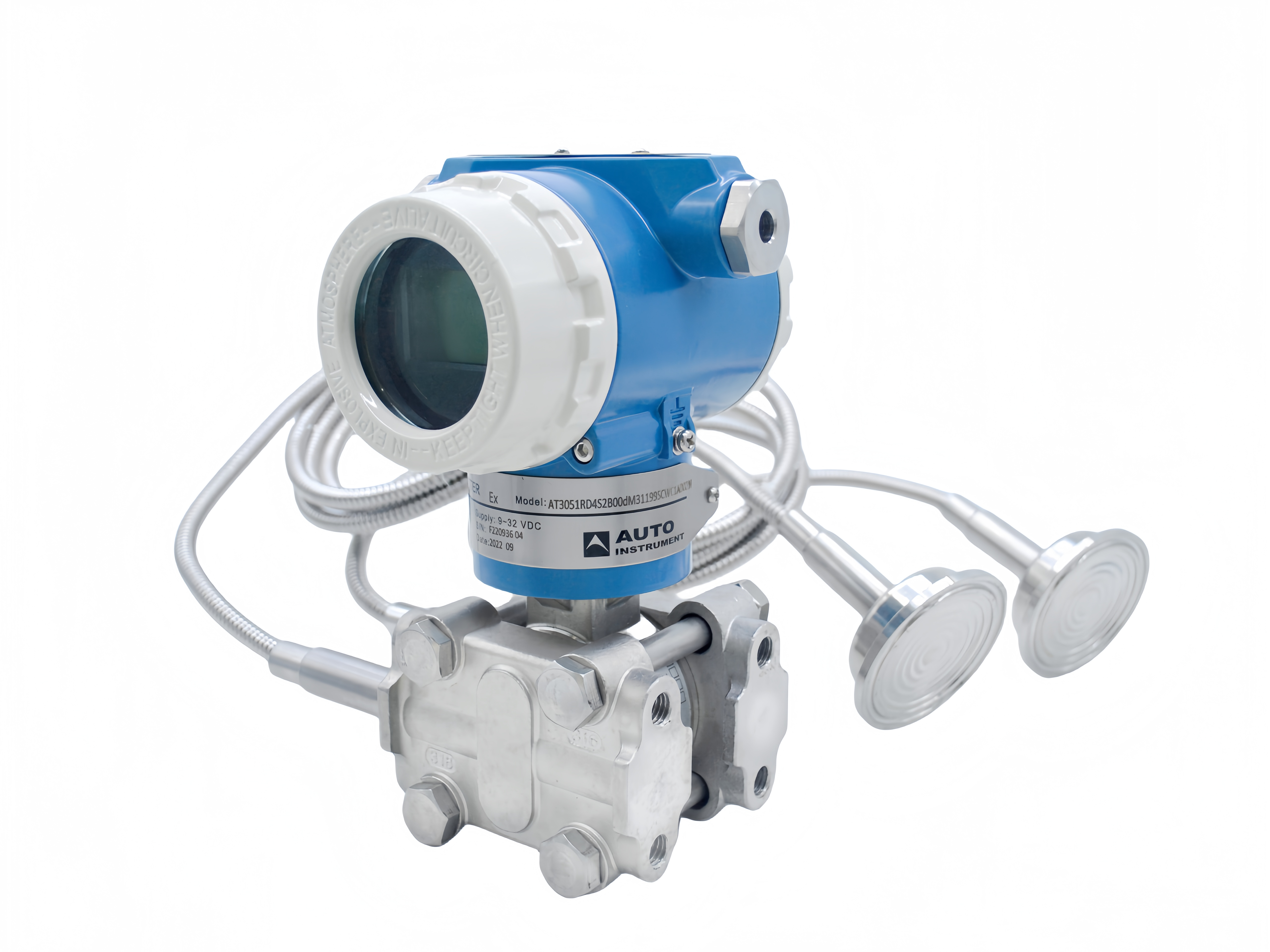

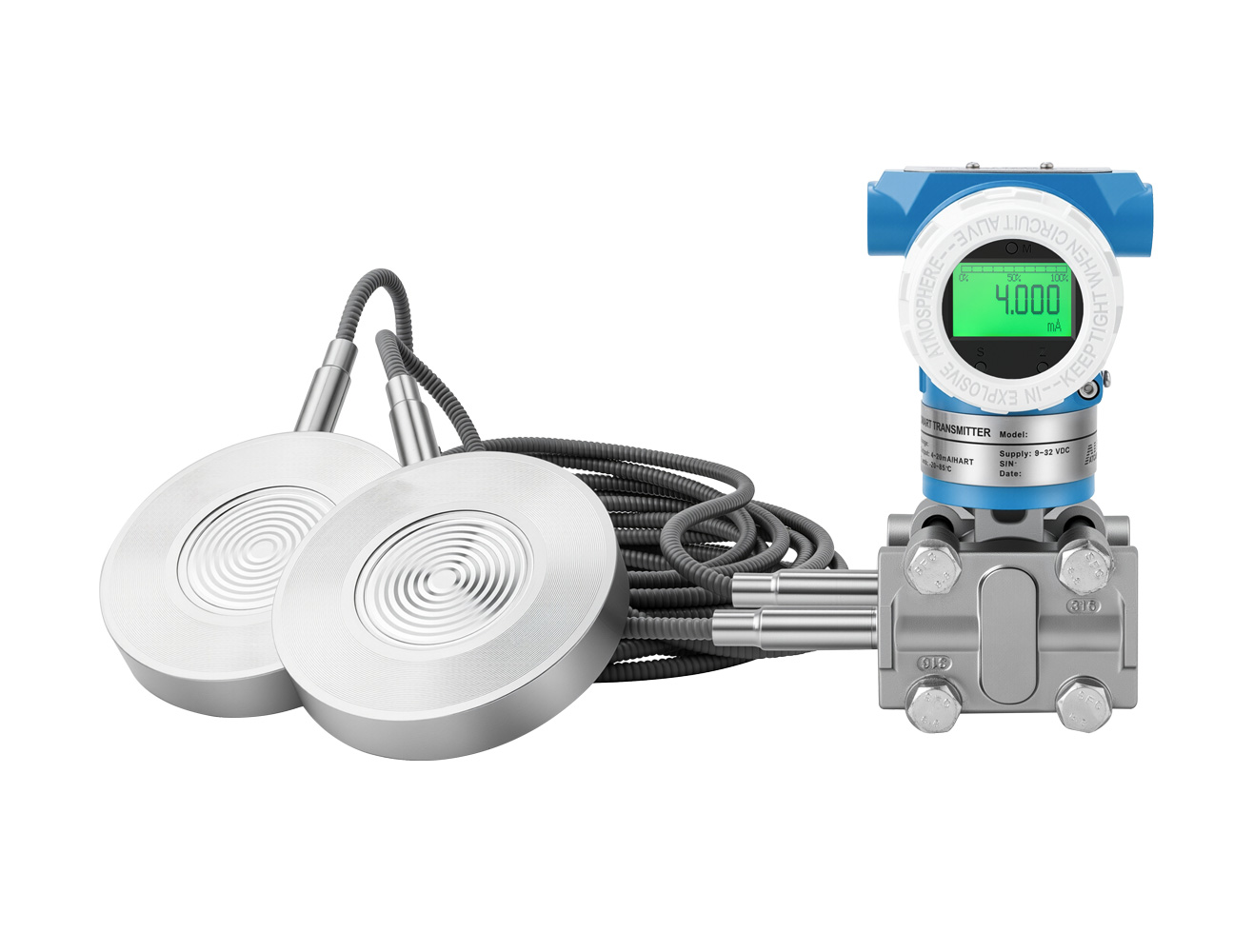

ATRD3051 remote level transmitter   Differentail pressure transmitter for level measurement is used to prevent pipe

directly into the transmitter in the medium pressure sensor assembly, between it and the transmitter is filled with fluid

by capillary connecting, ATRD3051RD  remote pressure transmitter used to measure pressure liquid, gas and steam,

and then outputs the signal pressure corresponding 4-20mADC transmitted. ATRD3051RD remote level transmitter can

communicate with each other HART Communicator, through its setting and monitoring.

Features

• Measuring range: 4kPa-2MPa

• Output signal: 4-20mA, 4~20mA/HART, customer

• Reference accuracy: ±0.2% URL, ±0.5% URL

• Media temperature: -40-120℃

• Measuring medium: pressure, level, differential pressure, density, interface, flow

• Protection class: IP66

• Diaphragm material: SUS316L, Hastelloy C,Tantalum

• Stability: ±0.2% URL/5 years

• Process connection:  Tri-Clamp 1-1/2″, Tri-Clamp 2″or as required

Industry application

• Process control system

• Petroleum industry

• Chemical industry

• Food industry
