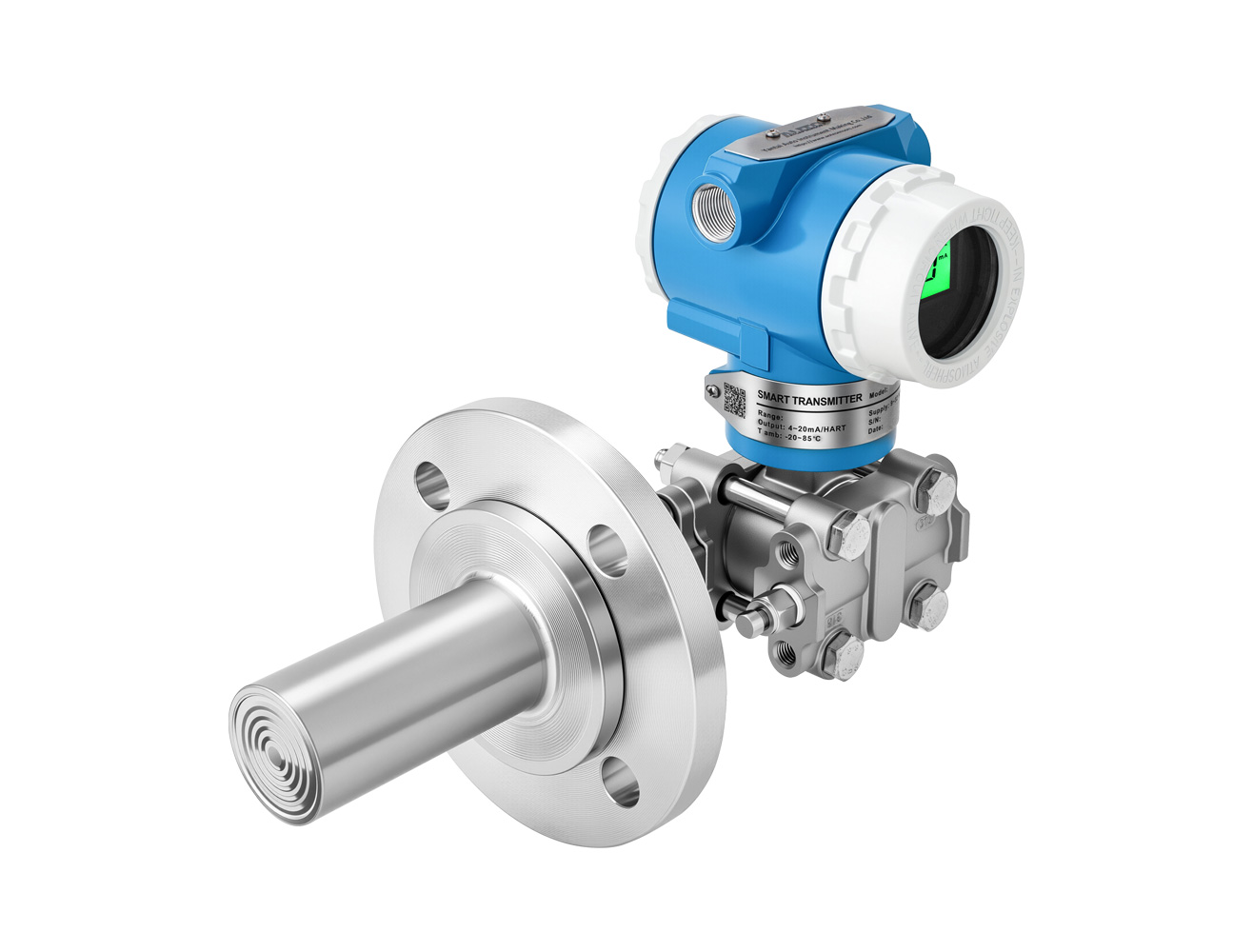

AT3051 LT Single Flange Level Transmitter
1.Application: liquid level transmitter
2.Output: 4-20mA, HART
3.Measurement range: 0~2068Kpa
4.Process connection: flange DN50 DN80 or as required
5.English LCD display
6.Certificate: CE, SIL3, ISO9001, Explosion Proof
Download
Brief Introduction

Flange level transmitter is used to measure level and density of liquids with solid and sediment,then convert into 4-20 mA

current signal output.available to connect with Hart Protocol for data monitor and control.diaphragm pressure transmitter

widely used in petroleum,chemical,metallurgy,electric power,food,paper, pharmaceutical, machinery,manufacturing and other

industries.

Features

• Measuring range: 10KPa-2MPa

• Working Temperature: -25 to +95C

• Current Output: 4 – 20 mA   2 wires   Hart Protocol

• Power Supply: 24VDC

• Ambient Temperature: -25 to +120C

• Process connection: DN50PN16, DN80PN16, as required

• Electrical Connections: 1/2”NPT or M20*1.5

• Enclosure:IP65

• Intrinsically Safe: ia II C T6

• Explosion proof: d II B T5

• Diaphragm material: SUS316L, Hastelloy C,Tantalum

Industry application

• Process control system

• Petroleum industry

• Chemical industry

• Power plant
