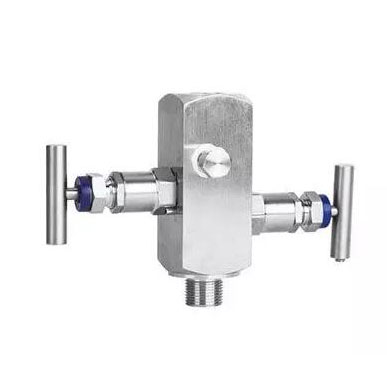

valve manifolds are mainly used for input signal switching on and switching off, pressure balance and discharge operation of

pressure/differential pressure transmitters, convenient for instruments installation, maintenance and inspection.

valve manifolds are widely used in industries of petroleum, chemical, metallurgical, power, liquid, natural gas andvarious of

conveying pipelines.

Features

• Material: stainless steel SUS304, SUS316
• Mechanical connection: 1/2-14NPT(F), M20*1.5(M), M20*1.5(M) with rear welding guiding pressure tube, customer

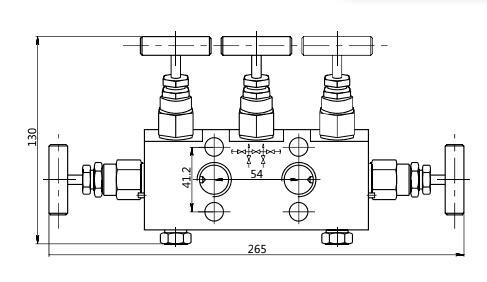

• Hole center distance between valve body two ends (instruments side): 54mm, 55.2mm,55.6mm, 57.2mm, 57.6mm, customer
• Hole center distance between valve body two ends (Mechanical connection side): standard 33mm, customer
